| Material: | Alloy Steel RoHS |
|---|

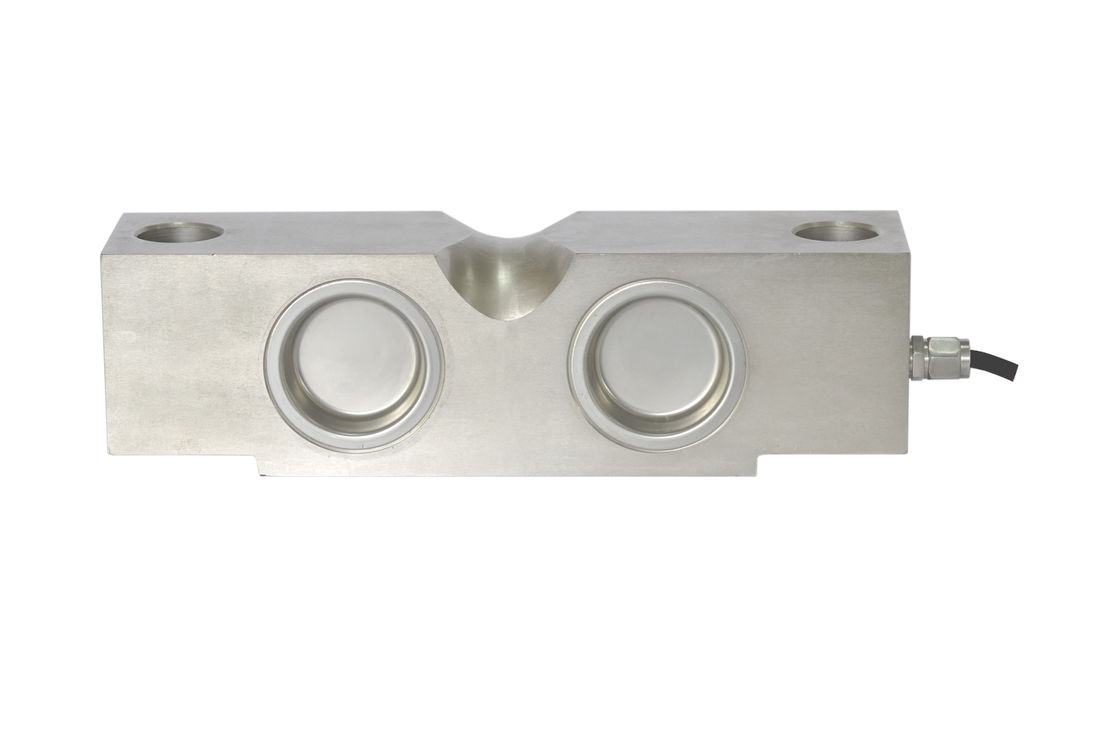

Load cell SAL101A
Features
Specification
| Maximum capacity (Emax) | klb | 10, 20, 25, 40, 50, 60, 75, 100, 125, 150 |
| Rated output (Cn) | mV/V | 3,0 ± 0,003 |
| Accuracy | ±%FS | 0.03 |
| Max. number of intervals (nLC) | - | 3000 |
| Creep (30 minutes) | ±%FS | 0.02 |
| Zero balance | ±%FS | 1 |
| Temperature effect on zero blance (TCO) | ±%FS/10°C | 0.02 |
| Temperature effect on sensitivity (TC Span) | ±%FS/10°C | 0.02 |
| Safe overload | %FS | 150 |
| Ultimate overload | %FS | 300 |
| Nominal temperature range | °C | -10 ... + 40 |
| Operating temperature range | °C | - 30 ... + 70 |
| Input impedance | Ω | 750 ± 10 |
| Output impedance | Ω | 703 ± 2 |
| Insulation impedance | MΩ | ≥ 5000 |
| Recommended excitation | V DC/AC | 10 - 12 |
| Excitation maximum | V DC/AC | 15 |
| Material | - | Alloy steel |
| Protection class | - | IP68 |
| Cable | - |
Length: 12m for 10-75klb; 16m for 100-150klb; or customize special length to order; Diameter: Φ 6mm |
Wiring
The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.
Dimension
